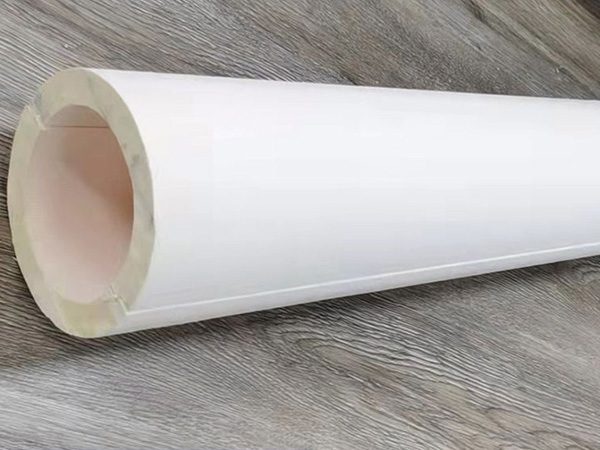

Material Selection and Functions of Outer Protective Layers for Phenolic Insulation Pipe Sections

Material Selection and Functions of Outer Protective Layers for Phenolic Insulation Pipe Sections

1. Aluminum Foil (0.05-0.1mm thickness)

Primary Functions:

Reflects 97% of radiant heat (ASTM C1371)

Provides vapor barrier (<0.01 perm, ASTM E96)

UV resistance for outdoor exposures

Best Applications:
Indoor HVAC systems, commercial plumbing

2. Stainless Steel Jacketing (304/316L, 0.4-0.8mm)

Critical Properties:

Withstands mechanical abuse (ASTM C1136 impact test)

Chemical resistance in refineries (pH 1-14)

Fireproofing for hydrocarbon pipelines

Installation Note:
Requires expansion joints every 3m for thermal movement

3. PVC/CPVC Cladding (1.5-3mm)

Advantages:

Lightweight corrosion protection

Color-coding options for pipe identification

Maintains flexibility at -20°C

Limitations:
Not suitable above 60°C continuous service

4. Fiberglass Reinforced Polymer (FRP)

Composite Benefits:

Strength-to-weight ratio surpasses steel

Non-conductive for electrical safety

Zero maintenance in coastal environments

Testing Standards:
NACE TM0177 for chemical plants

5. Hybrid Laminate Systems

Advanced Configurations:

Aluminum/bitumen composites for underground burial

Ceramic-coated fabrics for >400°C flare lines

Intumescent layers for 2-hour fire ratings

Selection Criteria:

Temperature: Match jacket's melting point to service conditions

Chemical Exposure: Verify resin compatibility (ASTM D543)

Mechanical Stress: Calculate impact loads from maintenance activities

Emerging Solutions:

Self-healing coatings for automatic repair of <5mm scratches

Photovoltaic-integrated jackets for pipe tracing power

RFID-embedded smart jackets for asset tracking

Maintenance Tip: Annual visual inspections should check for:

Jacket seam separation (>3mm gap)

Corrosion under insulation (CUI) at fastener points

UV degradation signs (chalking/yellowing)
