Performance and Applications of Phenolic Foam Boards in Low-Temperature Environments

Performance and Applications of Phenolic Foam Boards in Low-Temperature Environments

1. Low-Temperature Performance

Phenolic foam boards maintain excellent functionality in cryogenic and sub-zero conditions due to their unique properties:

Thermal Stability: Retains structural integrity at temperatures as low as -196°C (liquid nitrogen exposure), with minimal shrinkage or brittleness.

Low Thermal Conductivity (~0.018–0.025 W/m·K), providing efficient insulation even in extreme cold.

Moisture Resistance: Prevents frost formation and ice accumulation, avoiding degradation common in porous materials.

Mechanical Strength: Higher rigidity compared to conventional foams (e.g., PIR/PUR), reducing cracking risks under thermal contraction.

Limitation: Requires careful joint sealing in cyclic freeze-thaw conditions to prevent air/water ingress.

2. Key Applications in Cold Environments

Cryogenic Insulation:

LNG storage tanks & pipelines (-162°C).

Liquid oxygen/nitrogen transport vessels.

Cold Storage & Refrigeration:

Insulation for freezer warehouses, food processing plants.

Refrigerated truck/container linings.

Polar & Offshore Structures:

Arctic oil/gas pipelines and modular buildings.

Subsea equipment insulation (resists seawater corrosion + low temps).

HVAC Cooling Systems: Chilled water pipe insulation in industrial plants.

3. Advantages Over Alternatives

✔ Superior R-value retention vs. fiberglass (which loses efficiency when moist).

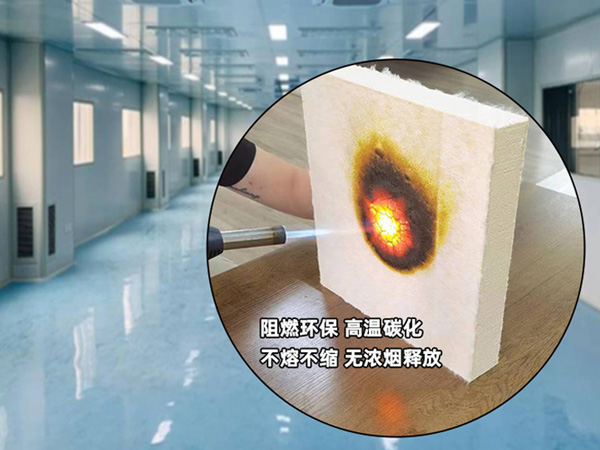

✔ Non-flammable (unlike polystyrene/XPS, critical in LNG facilities).
✔ Lightweight & easy to install compared to perlite or cellular glass.

Design Tip: For ultra-low temps (<-50°C), multilayer systems with vapor barriers are recommended to prevent condensation.
