Application of Phenolic Insulation Pipe Sections in Building Water Supply and Drainage Systems

Application of Phenolic Insulation Pipe Sections in Building Water Supply and Drainage Systems

1. Thermal Efficiency & Energy Savings

Hot Water Pipes:
Maintains water temperature at 60–80°C with minimal heat loss (λ = 0.022–0.028 W/m·K), reducing recirculation pump energy use by 20–30%.

Cold Water Pipes:
Prevents condensation in humid environments (dew point control) due to closed-cell structure (water absorption <1.5%).

2. Fire Safety Compliance

Non-Combustible Performance:
Meets Euroclass B-s1,d0 (EN 13501-1) and GB 8624 B1 standards, limiting flame spread in vertical shafts.

Low Smoke Emission:
Smoke density ≤50 (ASTM E662), critical for high-rise building evacuation routes.

3. Corrosion & Hygiene Protection

Condensation Prevention:
Eliminates moisture buildup on chilled pipes, protecting metal surfaces from rust (CUI risk reduction).

Mold Resistance:
Antimicrobial additives inhibit bacterial growth (tested per ISO 22196), suitable for hospitals and labs.

4. Mechanical Durability

Impact Resistance:
Withstands accidental knocks during maintenance (compressive strength 150–250 kPa).

Long-Term Stability:
No significant shrinkage or cracking after 50+ thermal cycles (ASTM C411).

5. Installation Advantages

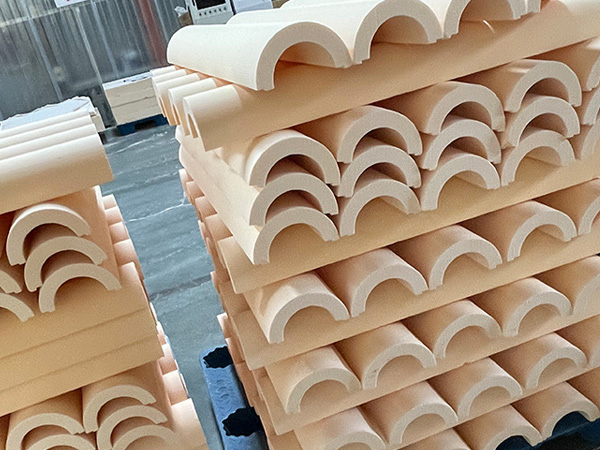

Pre-Fabricated Sections:
Half-shell designs with self-adhesive laps enable quick installation (50% faster than fiberglass wraps).

Space-Saving:
Thinner insulation vs. mineral wool (achieving same R-value at 30% reduced thickness).

6. Specialized Applications

Fire-Rated Shafts:
Combined with firestop collars (UL 1479) for pipe penetrations.

Underground Burial:
Moisture-resistant grades for direct soil contact (tested per ASTM C1617).

Maintenance Tip: Annual IR scans detect insulation gaps, ensuring consistent performance. For retrofit projects, phenolic’s lightweight nature minimizes structural reinforcement needs.

Emerging Trends:

Smart Monitoring: Integration with IoT sensors for real-time thermal performance tracking.

Recyclable Formulations: Binder-free phenolic for easier end-of-life recycling.
